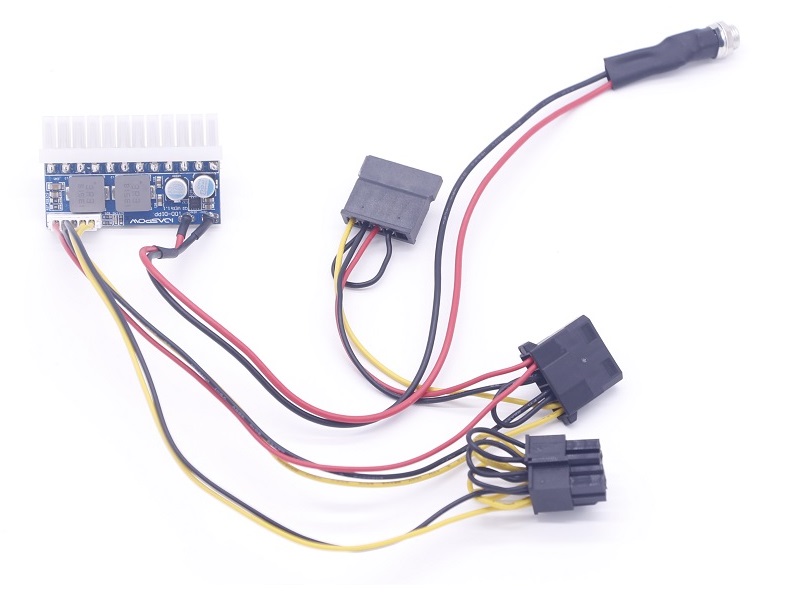

Product Category：DC ATX Power
◆Dimensions（MM）：In-line（24P）
◆Input voltage：+12V/DC（11.4V-12.6V）
◆Output Power：85W
◆Overall efficiency：>=94%
◆Operating temperature：0℃～40℃
◆Storage temperature：-20℃～80℃
Output characteristics:
The output voltage | Minimum(V) | Max(V) | Light load(A) | Overload(A) | Ripple(mV) | Wire color | Short circuit protection |
+12V | 11.40 | 12.60 | 0 | 4 | 120MAX | Yellow | Crash |
+5V | 4.75 | 5.25 | 0 | 4 | 50MAX | Red | Crash |
-12V | -11.40 | -12.60 | 0 | 0.01 | 240MAX | Blue | without |
+3.3V | 3.14 | 3.47 | 0 | 4 | 50MAX | Orange | Crash |
+5VSB | 4.75 | 5.25 | 0 | 1 | 50MAX | Purple | Crash |
Applications: MINI computers, all-in-one computers, POS machines, digital set-top boxes, ITX chassis, network servers, advertising machines, bank terminals, low-power systems, industrial control systems, etc.
